FH-R80

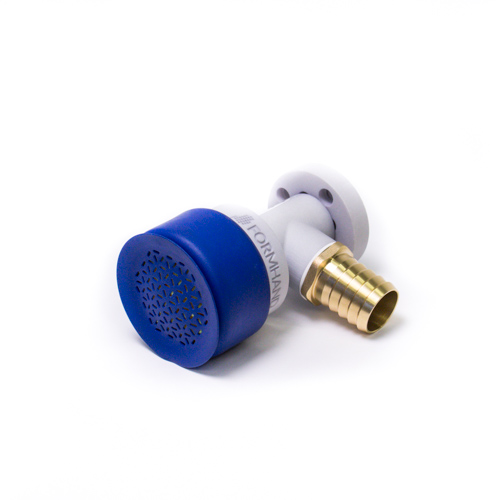

The FH-R80 module is our smallest and a cobot pro.

It consists of a frame and a gripping pad with a diameter of 80mm. The gripping pad manages to grip several different and complex objects. The magic is in the gripping pad: it is filled with a freely movable granulate and thus adapts to any surface. The adaptation takes place gently and thus ensures true shape variability.

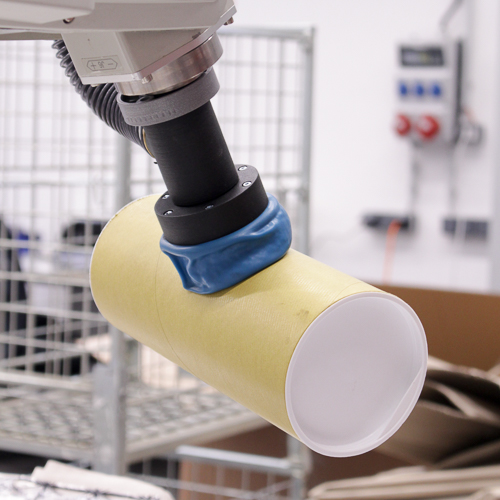

Other companies use the FH-R80 module in their cobot systems or in intralogistics to save costs by reducing special grippers and set-up times. The gripping pad can be filled with different granulates and can thus be configured for specific applications.

Our smallest module lifts up to 2kg and can be integrated perfectly into collaborative applications.

Your investment in flexible gripping in cobot applications:

  • Gripping module FH-R80: 1.701,00 €
  • Gripping module FH-R80 in FORMHAND-Bundle: 9.614,00 €

If the gripping pad of the FH-R80 is too small, discover the FH-R150 and the FH-E3020.




Product Features & Equipment

Interchangeable pad package
  • Round gripping pad, diameter 80 mm
  • Pad height/mold depth of approx. 40 mm
  • Maximum gripping force of 20 N
  • Change of pad package without tools
Self-adjusting & two-dimensional gripping
  • Granulate-filled gripping pad freely formable
  • Gripping force acts on the entire covered area
  • Installation instructions available
  • Leakage tolerant and gentle gripping
  •
available peripherals and equipment

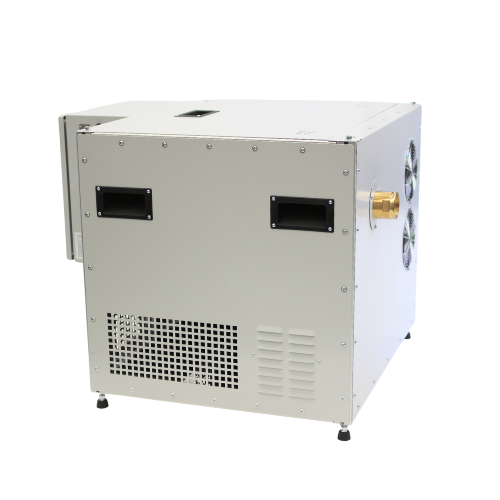

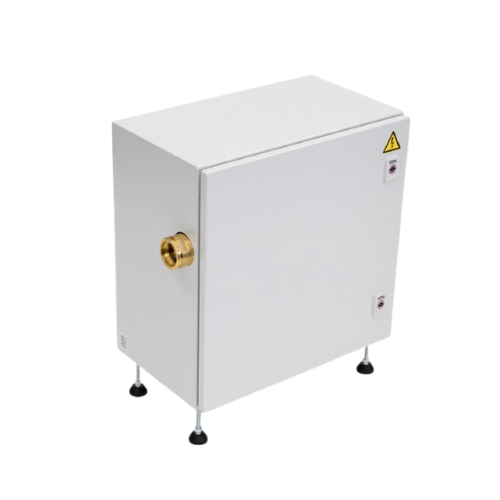

  • Blowers in various performance classes
  • Valve and filter equipment

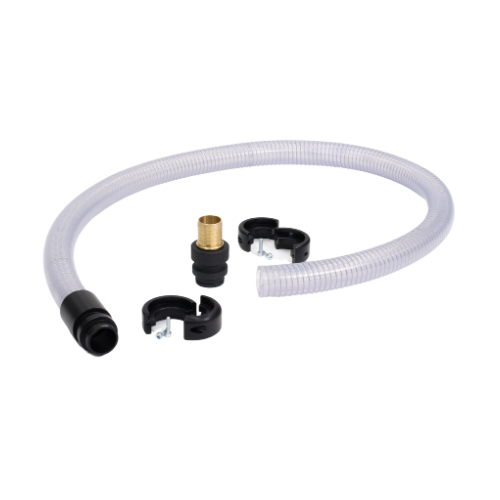

  • Tube packages with connections
  • Adapters for quick assembly
